Scope of Supplies & Materials

SCOPE OF SUPPLIES

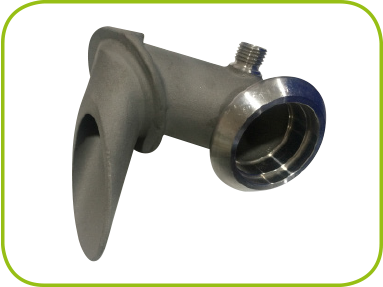

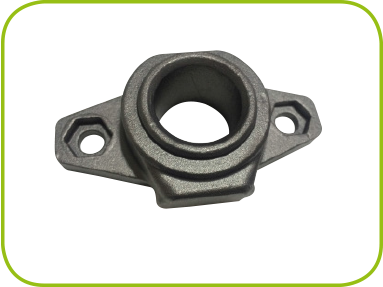

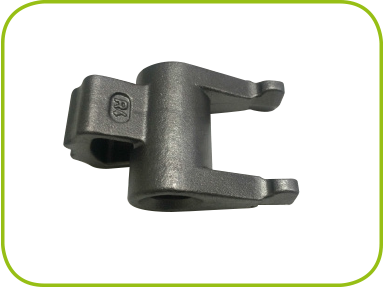

• Cast & Machined Components

(for Automotive, Human Implants, Engineering, Valve & Pumps, Food Processing Machinery, Packing, Conveyor systems)

  • Investment Castings from 5 g to 60 Kg
  • Size of Casting up to 500mm*500mm*250mm
  • Surface Quality N7-N9 (Ra 1.6-6.3Um)
  • Dimension Tolerances according to VDG specification P690 for Investment Castings
  • Visual Examination/ Inspection as per ASTM A997

• Machined Components

• Ferrous & Non-Ferrous Bar-Stock Machined Parts (Aluminium Round Bars, Flat Bar Components)

MATERIALS
MATERIAL
DESCRIPTION
Carbon Steel
Low-alloy steel
(Tensile strength less than 85 KSI)
[annealed, normalised and tempered.
Tensile strength less than 85 ksi (585 Mpa)].
Low-alloy steel
(Tensile strength greater than 85 KSI)
[annealed, normalised and tempered.
Tensile strength greater than 85 ksi (585 Mpa)].
Martensitic stainless steel.
Unstabilised austenitic stainless steel
(carbon greater than 0.03%)
Low-carbon austenitic stainless steel
(carbon equal to or less than 0.03%)
Stabilised austenitic stainless steel
Duplex (austenitic-ferritic) stainless steel
Precipitation-hardened austenic stainless steel
Nickel-base alloys
ASTM
GRADES
WCA, WCB, WCC, LCA, LCB, LCC
WC 1, WC4, WC5, WC6, WC9, LCI, LC2, LC3, LC4
C5, C12, C12A, WC11
CA-15, CA15-A, CA15-B, CA15-C, CA-15-D, CA15-M-A, CA6NM, CA6NM-A, CA6NM-B CA-40, CA6N, CB6
CE-8MN, CF-8, CF-8A, CF-8M, CF-10, CF-10M, CG-8M, CH-8, CH-lO, CH-20, CG6MN
CF-3, CF-3A, CF-3M, CF-3MA, CF-3MN, CK-3MCUN, CG3M, CN3MN
CF-8C, CF-IOMC, CK-20, HK-30, HK-40, HT-30, CN-7M
CD3MWCuN, CD-4MCu; 1A, IB, 2A, 3A, 4A, 5A, 6A
CB7CU-1, CB7CU-2
CW-12MW, CY-40 Class 1, CY-40 Class 2, CZ-lOO,
M-35-1, M-35-2, N-12MV, N-7M, CW-6M, CW-2M,
CW-6MC, CX-2MW, CU5MCUC
